Mercury Unified Power Solutions®

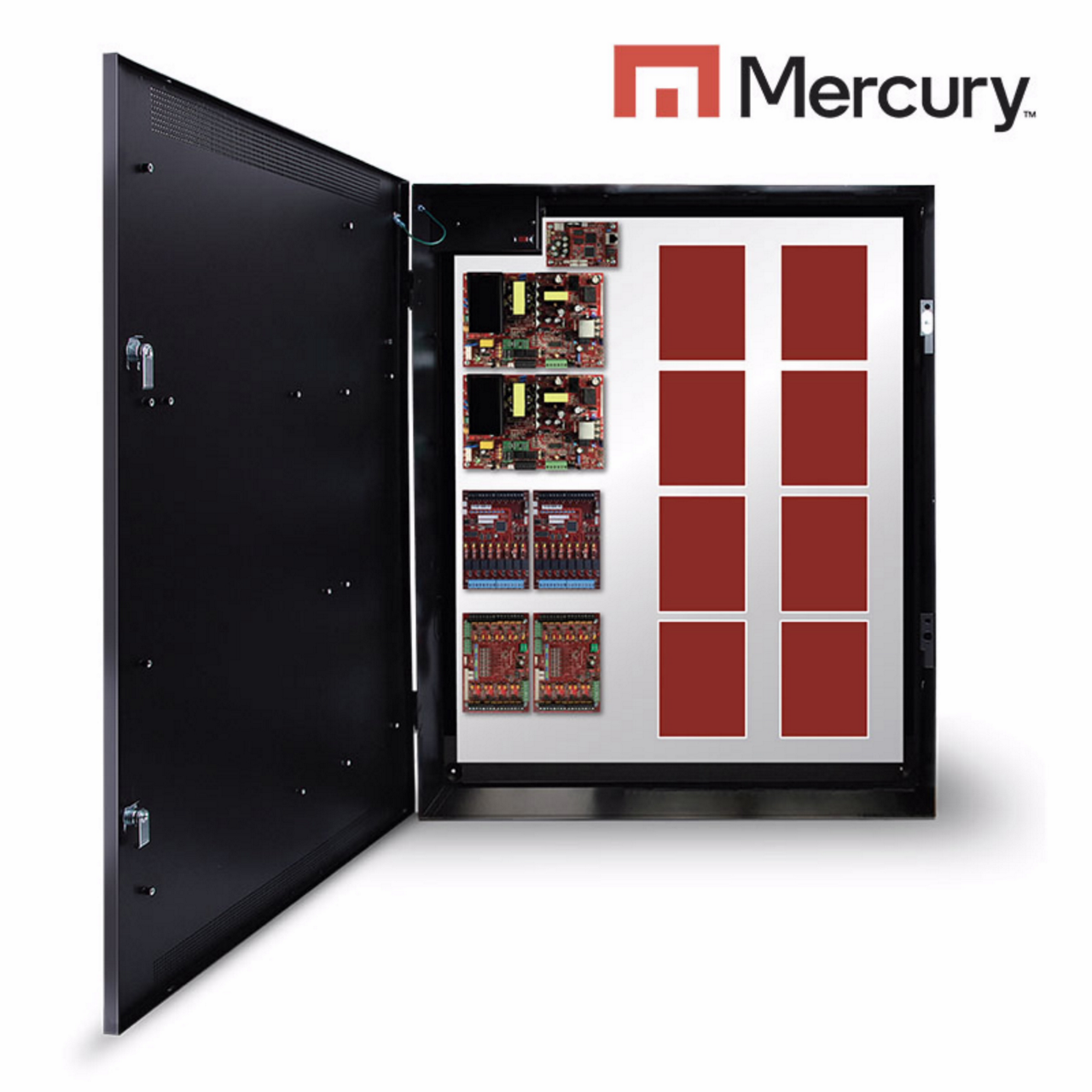

Mercury Unified Power systems combine system power, lock power and distribution alongside Mercury Security™ LP Series access hardware in one compact and secure UL Listed solution. Solutions are available from 2 to 24 doors, in single or dual voltage, standard or network managed.

Product Features:

Single enclosure solution reduces wall space requirements
Single AC drop
Removable backplate for easy installation
Predrilled & tapped holes for access panel mounting
Mounting hardware included
Single or dual voltage, standard or network managed

Voltage:

DV: Dual Voltage (12 and 24V)
SV: Single Voltage (12 or 24V)

Agency Listings

Product Warranty

Also available in ProWire Prewired and Rackmount configurations!

Need help selecting a product?
Try out LSP Design Center with Guided and Advanced Build flows to help choose the best product for your application!

The input voltage for all wall mount models listed on this page is 120VAC except when the suffix "/E" is used, which indicates an input voltage of 230VAC.

Product Information & Literature

Unified Power Solutions Mercury Data Sheet

Multi-Step System Selector - Mercury

Model

Type

Current/Voltage

Input

Outputs

Lock Option

Enclosure

Wire Management

Controller Mounting

Datasheet

Manuals

CAD Models

FPO75-B100C4PE1M

Standard

Dual voltage
2A @ 12VDC and 2A @ 24VDC

120VAC

4 lock

Standard cam lock

E1:
14"H x 12"W x 4.5"D

LP1502 or LP1501(x2)

PDF

Mercury Enclosure CADs

FPO75-D8PE1M

Standard

Single voltage
6A @ 12VDC or 3A @ 24VDC

120VAC

8 auxiliary

Standard cam lock

E1:
14"H x 12"W x 4.5"D

LP1502 or LP1501(x2)

PDF

Mercury Enclosure CADs

Model	Type	Current/Voltage	Input	Outputs	Lock Option	Enclosure	Wire Management	Controller Mounting	Datasheet	Manuals	CAD Models
FPO75-B100C4D8PE2M	Standard	Dual voltage 2A @ 12VDC and 2A @ 24VDC	120VAC	4 lock, 8 auxiliary	Standard cam lock	E2: 20"H x 16"W x 4.5"D	No	LP1502 & MR52	PDF	FPO B100 C4/C8 D8	Mercury Enclosure CADs
FPO75-B100M8PNLCE2M	Managed	Dual voltage 2A @ 12VDC and 2A @ 24VDC	120VAC	8 managed lock	Standard cam lock	E2: 20"H x 16"W x 4.5"D	No	LP1502 & MR52	PDF	FPO B100 M8 NLC	Mercury Enclosure CADs
FPO75-D8PE2M	Standard	Single voltage 6A @ 12VDC or 3A @ 24VDC	120VAC	8 auxiliary	Standard cam lock	E2: 20"H x 16"W x 4.5"D	No	LP1502 & MR52	PDF	FPO D8	Mercury Enclosure CADs

Model	Type	Current/Voltage	Input	Outputs	Lock Option	Enclosure	Wire Management	Controller Mounting	Datasheet	Manuals	CAD Models
FPO150-B100C8D8PE4M	Standard	Dual voltage 4A @ 12VDC and 4A @ 24VDC	120VAC	8 lock, 8 auxiliary	Standard cam lock	E4: 24"H x 20"W x 6.5"D	No	LP1502 & MR52(x3)	PDF	FPO B100 C4/C8 D8	Mercury Enclosure CADs
FPO150-B100C8D8PE6M	Standard	Dual voltage 4A @ 12VDC and 4A @ 24VDC	120VAC	8 lock, 8 auxiliary	Standard cam lock	E6: 30"H x 23"W x 6.5"D	No	LP1502 & MR52(x3)	PDF	FPO B100 C4/C8 D8	Mercury Enclosure CADs
FPO150-B100D8PM8NLCE4M	Managed	Dual voltage 4A @ 12VDC and 4A @ 24VDC	120VAC	8 managed lock, 8 auxiliary	Standard cam lock	E4: 24"H x 20"W x 6.5"D	No	LP1502 & MR52(x3)	PDF	FPO B100 D8 M8 NLC	Mercury Enclosure CADs
FPO150-B100M8NLC2SD4PE4M	Managed	Dual voltage 4A @ 12VDC and 4A @ 24VDC	120VAC	8 managed lock, 8 managed auxiliary	Standard cam lock	E4: 24"H x 20"W x 6.5"D	No	LP1502 & MR52(x3)	PDF	FPO B100 M8 NLC SD4	Mercury Enclosure CADs
FPO150-B100D8PM8NLCE6M	Managed	Dual voltage 4A @ 12VDC and 4A @ 24VDC	120VAC	8 managed lock, 8 auxiliary	Standard cam lock	E6: 30"H x 23"W x 6.5"D	No	LP1502 & MR52(x3)	PDF	FPO B100 D8 M8 NLC	Mercury Enclosure CADs
FPO150-B100M8NLC2SD4PE6M	Managed	Dual voltage 4A @ 12VDC and 4A @ 24VDC	120VAC	8 managed lock, 8 managed auxiliary	Standard cam lock	E6: 30"H x 23"W x 6.5"D	No	LP1502 & MR52(x3)	PDF	FPO B100 M8 NLC SD4	Mercury Enclosure CADs
FPO75-D8PE4M	Standard	Single voltage 6A @ 12VDC or 3A @ 24VDC	120VAC	8 auxiliary	Standard cam lock	E4: 24"H x 20"W x 6.5"D	No	LP1502 & MR52(x3)	PDF	FPO D8	Mercury Enclosure CADs
FPO75-D8PE6M	Standard	Single voltage 6A @ 12VDC or 3A @ 24VDC	120VAC	8 auxiliary	Standard cam lock	E6: 30"H x 23"W x 6.5"D	No	LP1502 & MR52(x3)	PDF	FPO D8	Mercury Enclosure CADs

Model	Type	Current/Voltage	Input	Outputs	Lock Option	Enclosure	Wire Management	Controller Mounting	Datasheet	Manuals	CAD Models
FPO150/250-2C82D8PE4M1	Standard	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 lock, 16 auxiliary	Standard cam lock	E4: 24"H x 20"W x 6.5"D	No	LP1502 & MR52(x7)	PDF	FPO C4/C8 D8	Mercury Enclosure CADs
FPO150/250-2C82D8PE6M1	Standard	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 lock, 16 auxiliary	Standard cam lock	E6: 30"H x 23"W x 6.5"D	No	LP1502 & MR52(x7) & MR16(x1)	PDF	FPO C4/C8 D8	Mercury Enclosure CADs
FPO150/250-2C82D8PE8M1	Standard	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 lock, 16 auxiliary	Standard cam lock	E8: 36"H x 30"W x 6.5"D	No	LP1502 & MR52(x7) & MR16(x4)	PDF	FPO C4/C8 D8	Mercury Enclosure CADs
FPO150/250-2C82D8PE8M2	Standard	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 lock, 16 auxiliary	Standard cam lock	E8: 36"H x 30"W x 6.5"D	No	LP1502 & MR52(x7)	PDF	FPO C4/C8 D8	Mercury Enclosure CADs
FPO150/250-2D8P2M8NLCE4M1	Managed	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 managed lock, 16 auxiliary	Standard cam lock	E4: 24"H x 20"W x 6.5"D	No	LP1502 & MR52(x7)	PDF	FPO D8 M8 NLC	Mercury Enclosure CADs
FPO150/250-2M8NLCSD16E4M1	Managed	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 managed lock, 16 managed auxiliary	Standard cam lock	E4: 24"H x 20"W x 6.5"D	No	LP1502 & MR52(x7)	PDF	FPO M8 NLC SD16	Mercury Enclosure CADs
FPO150/250-2D8P2M8NLCE6M1	Managed	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 managed lock, 16 auxiliary	Standard cam lock	E6: 30"H x 23"W x 6.5"D	No	LP1502 & MR52(x7) & MR16(x1)	PDF	FPO D8 M8 NLC	Mercury Enclosure CADs
FPO150/250-2M8NLCSD16E6M1	Managed	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 managed lock, 16 managed auxiliary	Standard cam lock	E6: 30"H x 23"W x 6.5"D	No	LP1502 & MR52(x7) & MR16(x1)	PDF	FPO M8 NLC SD16	Mercury Enclosure CADs
FPO150/250-2D8P2M8NLCE8M1	Managed	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 managed lock, 16 auxiliary	Standard cam lock	E8: 36"H x 30"W x 6.5"D	No	LP1502 & MR52(x7) & MR16(x4)	PDF	FPO D8 M8 NLC	Mercury Enclosure CADs
FPO150/250-2M8NLCSD16E8M3	Managed	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 managed lock, 16 managed auxiliary	Standard cam lock	E8: 36"H x 30"W x 6.5"D	No	LP1502 & MR52(x7) & MR16(x6)	PDF	FPO M8 NLC SD16	Mercury Enclosure CADs
FPO150/250-2D8P2M8NLCE8M2	Managed	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 managed lock, 16 auxiliary	Standard cam lock	E8: 36"H x 30"W x 6.5"D	No	LP1502 & MR52(x7)	PDF	FPO D8 M8 NLC	Mercury Enclosure CADs
FPO150/250-2M8NLCSD16E8M2	Managed	Dual voltage 12A @ 12VDC and 10A @ 24VDC	120VAC	16 managed lock, 16 managed auxiliary	Standard cam lock	E8: 36"H x 30"W x 6.5"D	No	LP1502 & MR52(x7)	PDF	FPO M8 NLC SD16	Mercury Enclosure CADs
FPO150-D8PE4M1	Standard	Single voltage 12A @ 12VDC or 6A @ 24VDC	120VAC	8 auxiliary	Standard cam lock	E4: 24"H x 20"W x 6.5"D	No	LP1502 & MR52(x7) & MR16(x2)	PDF	FPO D8	Mercury Enclosure CADs
FPO150-D8PE6M1	Standard	Single voltage 12A @ 12VDC or 6A @ 24VDC	120VAC	8 auxiliary	Standard cam lock	E6: 30"H x 23"W x 6.5"D	No	LP1502 & MR52(x7) & MR16(x1)	PDF	FPO D8	Mercury Enclosure CADs
FPO150-2D8PE8M1	Standard	Single voltage 12A @ 12VDC or 6A @ 24VDC	120VAC	16 auxiliary	Standard cam lock	E8: 36"H x 30"W x 6.5"D	No	LP1502 & MR52(x7) & MR16(x4)	PDF	FPO D8	Mercury Enclosure CADs
FPO150-2D8PE8M2	Standard	Single voltage 12A @ 12VDC or 6A @ 24VDC	120VAC	16 auxiliary	Standard cam lock	E8: 36"H x 30"W x 6.5"D	No	LP1502 & MR52(x7)	PDF	FPO D8	Mercury Enclosure CADs

Model	Type	Current/Voltage	Input	Outputs	Lock Option	Enclosure	Wire Management	Controller Mounting	Datasheet	Manuals	CAD Models
FPO250/250-3C83D8PE8M3	Standard	Dual voltage 20A @ 12VDC and 10A @ 24VDC	120VAC	24 lock, 24 auxiliary	Standard cam lock	E8: 36"H x 30"W x 6.5"D	No	LP1502 & MR52(x11)	PDF	FPO C4/C8 D8	Mercury Enclosure CADs
FPO250/250-3C83D8PE12M	Standard	Dual voltage 20A @ 12VDC and 10A @ 24VDC	120VAC	24 lock, 24 auxiliary	Standard cam lock	E12: 48"H x 36"W x 8"D	No	LP1502 & MR52(x11)	PDF	FPO C4/C8 D8	Mercury Enclosure CADs
FPO250/250/250-3C83D8PE12M	Standard	Dual voltage 20A @ 12VDC and 20A @ 24VDC	120VAC	24 lock, 24 auxiliary	Standard cam lock	E12: 48"H x 36"W x 8"D	No	LP1502 & MR52(x11)	PDF	FPO C4/C8 D8	Mercury Enclosure CADs
FPO250/250-3D8P3M8NLCE12M	Managed	Dual voltage 20A @ 12VDC and 10A @ 24VDC	120VAC	24 managed lock, 24 auxiliary	Standard cam lock	E12: 48"H x 36"W x 8"D	No	LP1502 & MR52(x11)	PDF	FPO D8 M8 NLC	Mercury Enclosure CADs
FPO250/250/250-3D8P3M8NLCE12M	Managed	Dual voltage 20A @ 12VDC and 20A @ 24VDC	120VAC	24 managed lock, 24 auxiliary	Standard cam lock	E12: 48"H x 36"W x 8"D	No	LP1502 & MR52(x11)	PDF	FPO D8 M8 NLC	Mercury Enclosure CADs
FPO250/250-3M8NLC2SD16E12M	Managed	Dual voltage 20A @ 12VDC and 10A @ 24VDC	120VAC	24 managed lock, 32 managed auxiliary	Standard cam lock	E12: 48"H x 36"W x 8"D	No	LP1502 & MR52(x11)	PDF	FPO M8 NLC SD16	Mercury Enclosure CADs
FPO250/250/250-3M8NLC2SD16E12M	Managed	Dual voltage 20A @ 12VDC and 20A @ 24VDC	120VAC	24 managed lock, 32 managed auxiliary	Standard cam lock	E12: 48"H x 36"W x 8"D	No	LP1502 & MR52(x11)	PDF	FPO D8 M8 NLC SD16	Mercury Enclosure CADs
FPO250-3D8PE12M	Standard	Single voltage 20A @ 12VDC or 10A @ 24VDC	120VAC	24 auxiliary	Standard cam lock	E12: 48"H x 36"W x 8"D	No	LP1502 & MR52(x11)	PDF	FPO D8	Mercury Enclosure CADs

Doors	Model	Dimensions (inches)	Datasheet	Manuals	CAD Files	Note
1	E5M	8.5H x 11W x 3D	PDF	n/a	Mercury Enclosure CADs
2	E1M	14H x 12W x 4.5D	PDF	n/a	Mercury Enclosure CADs
2-4	E2M	20H x 16W x 4.5D	PDF	n/a	Mercury Enclosure CADs
4-8	E4M	24H x 20W x 6.5D	PDF	n/a	Mercury Enclosure CADs
8-16	E4M1	24H x 20W x 6.5D	PDF	n/a	Mercury Enclosure CADs
4-8	E6M	30H x 23W x 6.5D	PDF	n/a	Mercury Enclosure CADs
8-16	E6M1	30H x 23W x 6.5D	PDF	n/a	Mercury Enclosure CADs
8-12	E8M	36H x 30W x 6.5D	PDF	n/a	Mercury Enclosure CADs
12-16	E8M1	36H x 30W x 6.5D	PDF	n/a	Mercury Enclosure CADs
16	E8M2	36H x 30W x 6.5D	PDF	n/a	Mercury Enclosure CADs
16-24	E8M3	36H x 30W x 6.5D	PDF	n/a	Mercury Enclosure CADs
24	E12M	48H x 36W x 8.0D	PDF	n/a	Mercury Enclosure CADs
16-18	E8MH	36H x 30W x 6.5D	PDF	n/a	Mercury Enclosure CADs	No power supply mounting - holds 9 Mercury LP or 9 Honeywell ProWatch ONLY
	EPLT-1M		PDF	n/a	Mercury Enclosure CADs	Mounts various Mercury, Genetec, or LifeSafety Power boards in an open 6x8 Mercury Slot
